WGJ-250Section Steel Bending
I-Beam Bending Machine
Hydraulic arch bender for tunnel and underground steel supports, I-beam 12# to 25#.
I-Beam Bending MachineWGJ-250
12#–25#I-beam range
25 MPaRated pressure
8.3 m/minOutput
R 1.5 mMin. radius (CNC)
Overview

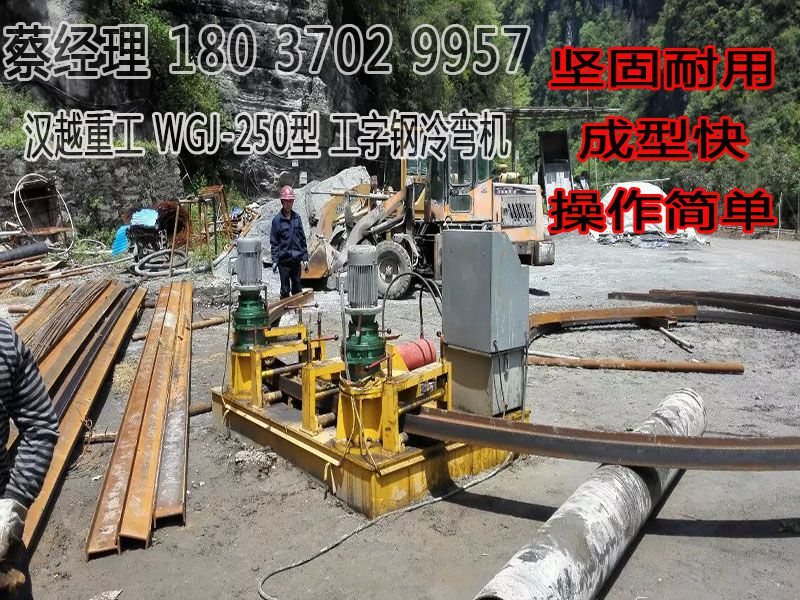

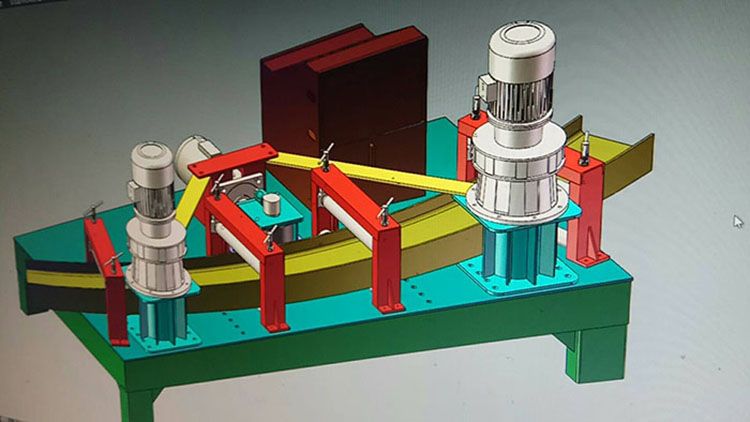

The WGJ-250 is our fully hydraulic section bender for cold-bending I-beam and channel steel into arches. Its hydraulic system gives smooth transmission and high pressure, which makes it the standard machine for steel arch supports in tunnels, subways, hydropower stations and underground caverns.
Key features
- Hydraulic top-roller feed: each press advances 10–15 mm for controlled, repeatable arcs.
- Cycloidal pin-wheel reducer (ratio 1:87) drives the rollers forward and reverse.
- Adjustable relief valve sets working pressure to suit each section size.
- Compact 2.5 m frame; works with a roller support table for long members.
- CNC version: PLC control with digital encoder, cylinder travel positioned automatically with no manual measuring.
- Unlimited feed forward and back; one-pass automatic forming of arches, variable radius and fixed-angle bends.
- Double automatic stop at the set size, plus infrared braking.
Specifications
| Parameter | Value |
|---|---|
| Model | WGJ-250 |
| Power supply | 380 V |
| Total power | 12 kW |
| Rated pressure | 25 MPa |
| Section range | I-beam 12#–25# |
| Reducer | Cycloidal pin-wheel |
| Speed ratio | 1:87 |
| Output shaft | Φ55 mm |
| Drive roller diameter | Φ160 mm |
| Output | 8.3 m/min |
| Machine weight | 1,400 kg |
| Dimensions (L×W×H) | 2500 × 1500 × 1400 mm |
Minimum bending radius by I-beam size
| I-beam | Min. radius R (mm) |
|---|---|
| 14# | 4590 |
| 16# | 3817 |
| 18# | 3255 |
| 20# | 2827 |
| 22# | 2490 |
| 25# | 3000 |
CNC version (WGJ-250 NC)
| Parameter | Value |
|---|---|
| Total power | 12 kW |
| Voltage | 380 V |
| Hydraulic system pressure | 20 MPa |
| Cylinder advance speed | 1–13 mm/s |
| Main drive wheel speed | 7 r/min |
| Min. bending radius | 1.5 m |
| Weight | 2380 kg |
| Dimensions | 2500 × 1500 × 1200 mm |
Bends I-beam, H-beam, mining U-steel, C-steel, angle, channel, rail, square bar and pipe.
Applications
Tunnel steel archesSubway constructionHydropower stationsMine roadway supportHighway guardrails
