Q35YPunching & Shearing
Hydraulic Ironworker
Punch, shear and notch plate, angle, channel, I-beam and bar on one machine. Four models, 60 to 160 t.
Hydraulic IronworkerQ35Y
60–160 tPunching force
16–30 mmMax. plate thickness
Φ25–38 mmMax. punch diameter
≤450 MPaMaterial strength
Overview
The Q35Y series is our latest hydraulic combined punching and shearing machine. It shears, punches and notches plate, square bar, round bar, angle, channel and I-beam. Each model ships with a full set of standard tooling, and dies for special sections can be made to order.
Key features

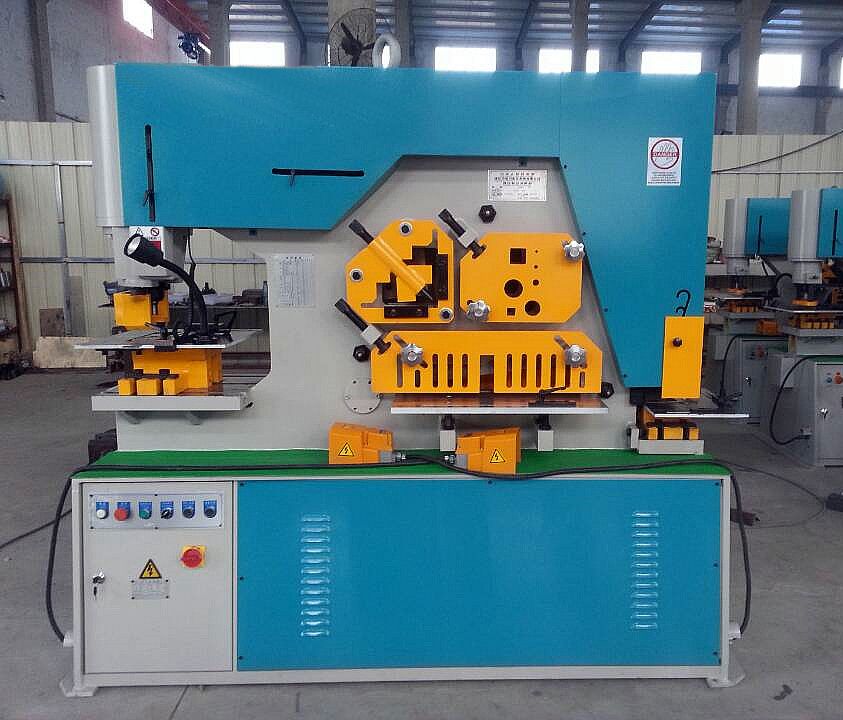

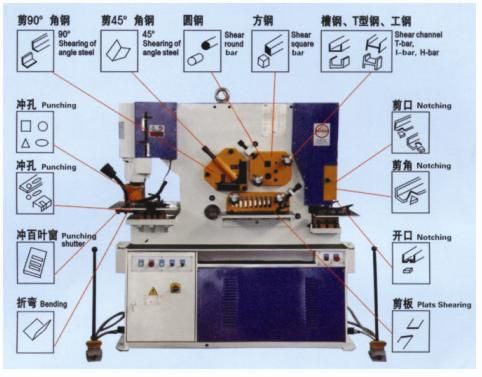

- Five workstations: punching, plate shearing, angle shearing, bar shearing and notching.
- Shears angle at 90° and 45°; channel, I-beam and T-bar dies available to order.
- Standard accessories: punch die, plate blade, angle blade, bar blade and notch blade, one set each.
- Schneider electrics, Beijing Huade or Japan 3H hydraulics, Valqua seals.
Specifications
| Parameter | Value |
|---|---|
| Transmission | Hydraulic |
| Plate strength | ≤450 N/mm² |
| Slide stroke | 80 mm |
| Models | Q35Y-16 / Q35Y-20 / Q35Y-25 / Q35Y-30 |
Model comparison
| Parameter | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
|---|---|---|---|---|
| Punching force (t) | 60 | 90 | 120 | 160 |
| Max. plate thickness (mm) | 16 | 20 | 25 | 30 |
| Shearing angle | 7° | 8° | 8° | 8° |
| Plate per stroke, T×W (mm) | 16×250 / 8×400 | 20×330 / 10×480 | 25×330 / 16×600 | 30×355 / 20×600 |
| Strokes per minute | 12 | 16 | 16 | 12 |
| Throat depth (mm) | 300 | 355 | 400 | 600 |
| Punching thickness (mm) | 16 | 20 | 25 | 26 |
| Max. punch diameter (mm) | 25 | 30 | 35 | 38 |
| Main motor (kW) | 4 | 5.5 | 7.5 | 11 |
| Dimensions L×W×H (mm) | 1640×730×1770 | 1640×800×1900 | 2355×960×2090 | 2680×1040×2300 |
| Weight (kg) | 1600 | 2300 | 4200 | 6200 |
Section shearing capacity (mm)
| Model | Round bar | Square bar | Angle 90° | Angle 45° | T-bar 90° | T-bar 45° | I-beam | Channel |
|---|---|---|---|---|---|---|---|---|
| Q35Y-16 | 45 | 40×40 | 125×125×12 | 70×70×8 | 120×120×12 | 60×60×8 | 126×74×5 | 126×53×5.5 |
| Q35Y-20 | 50 | 50×50 | 140×140×12 | 70×70×10 | 140×140×12 | 70×70×10 | 160×86×6 | 160×60×6.5 |
| Q35Y-25 | 60 | 50×50 | 160×160×14 | 80×80×7 | 160×160×14 | 80×80×10 | 200×102×9 | 200×75×9 |
| Q35Y-30 | 65 | 55×55 | 180×180×16 | 80×80×10 | 180×180×16 | 80×80×10 | 280×124×10.5 | 280×86×11.5 |
Channel, I-beam and T-bar shearing need special-order dies.
Main components
| Component | Brand / specification |
|---|---|
| Electrical components | Schneider |
| Hydraulic components | Beijing Huade / Japan 3H |
| Seals | Japan Valqua |
| Main motor | Jiangsu Weiteli |
| Pump | Plunger or gear pump (Qidong / Taiwan) |

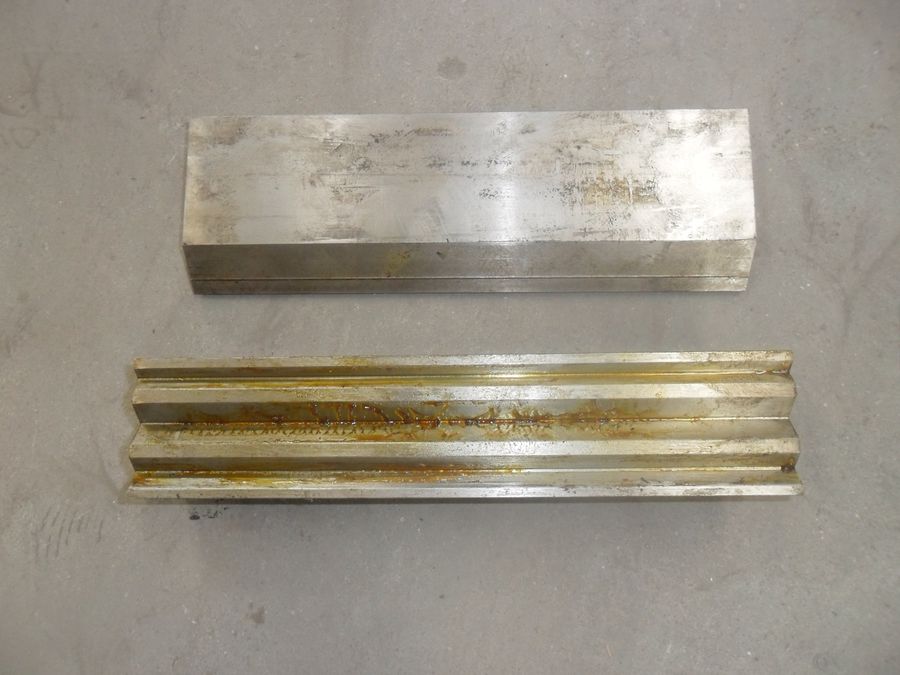

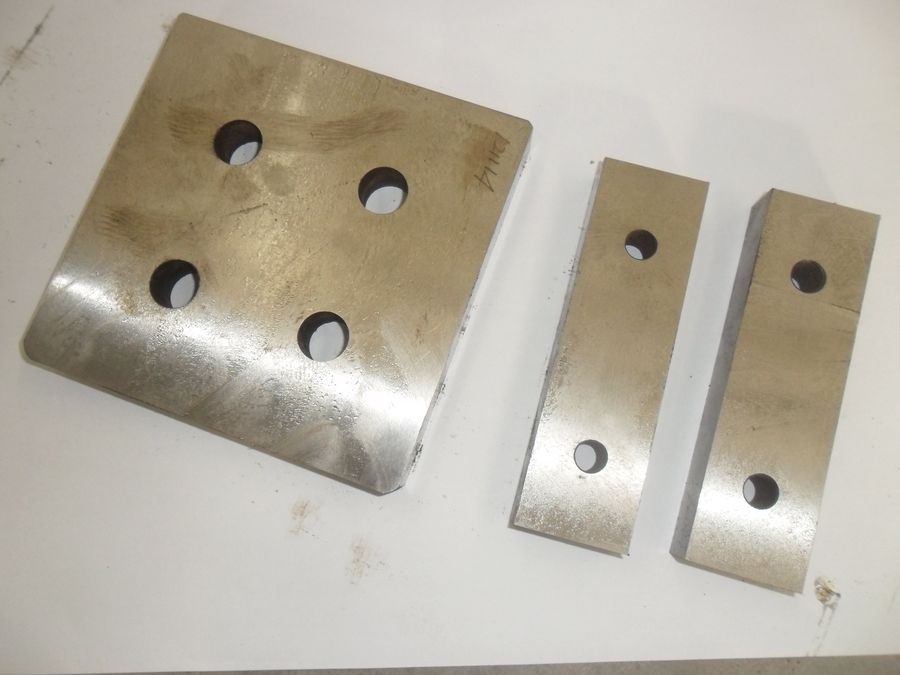

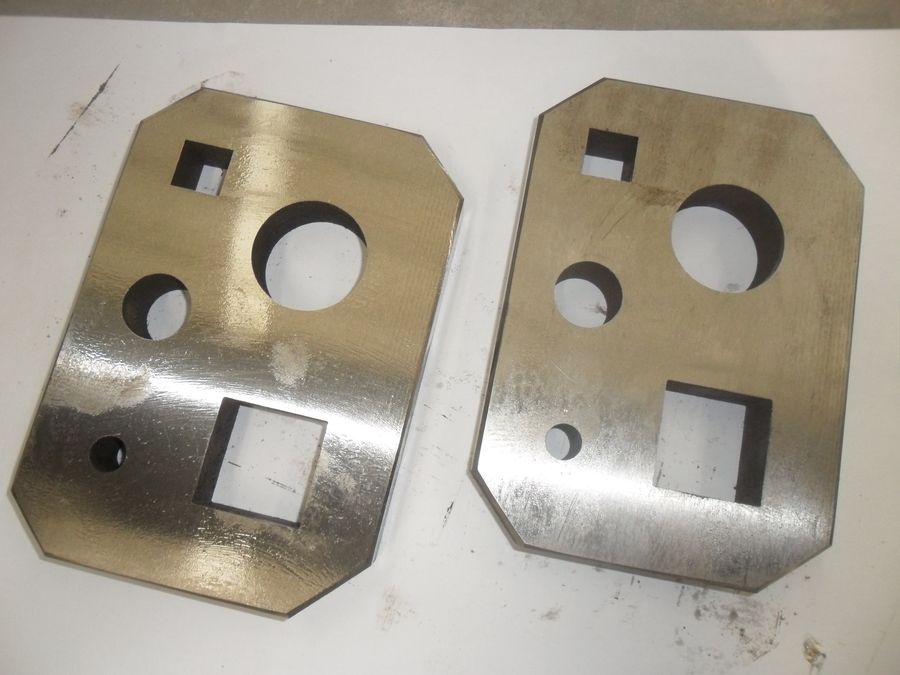

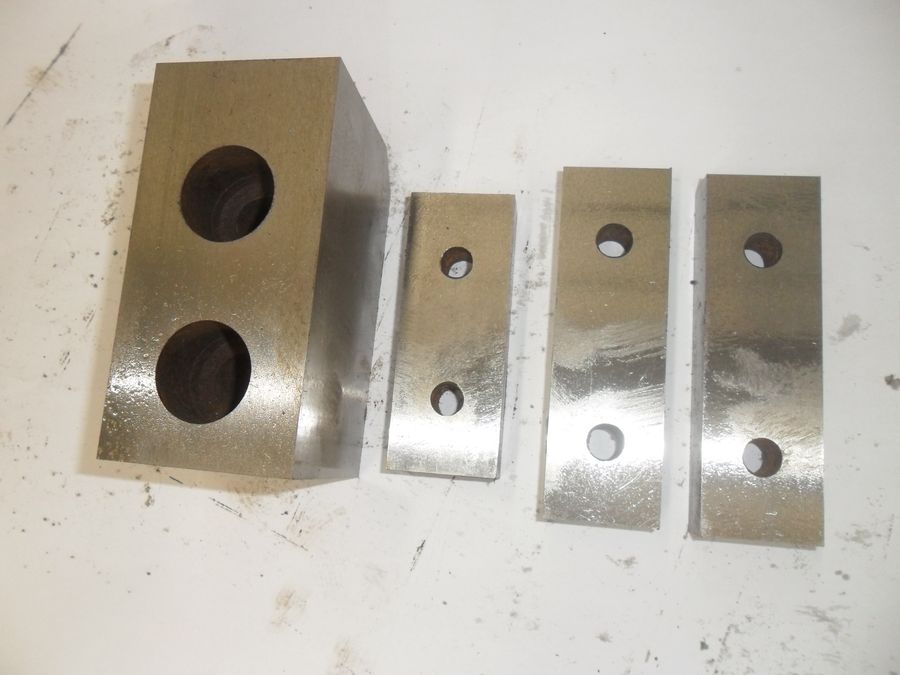

Tooling

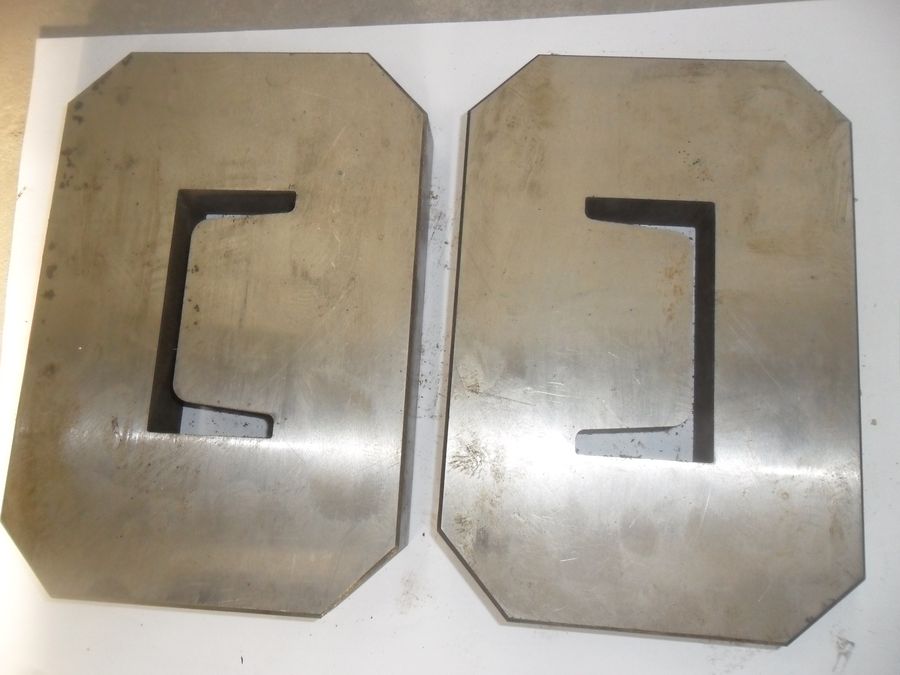

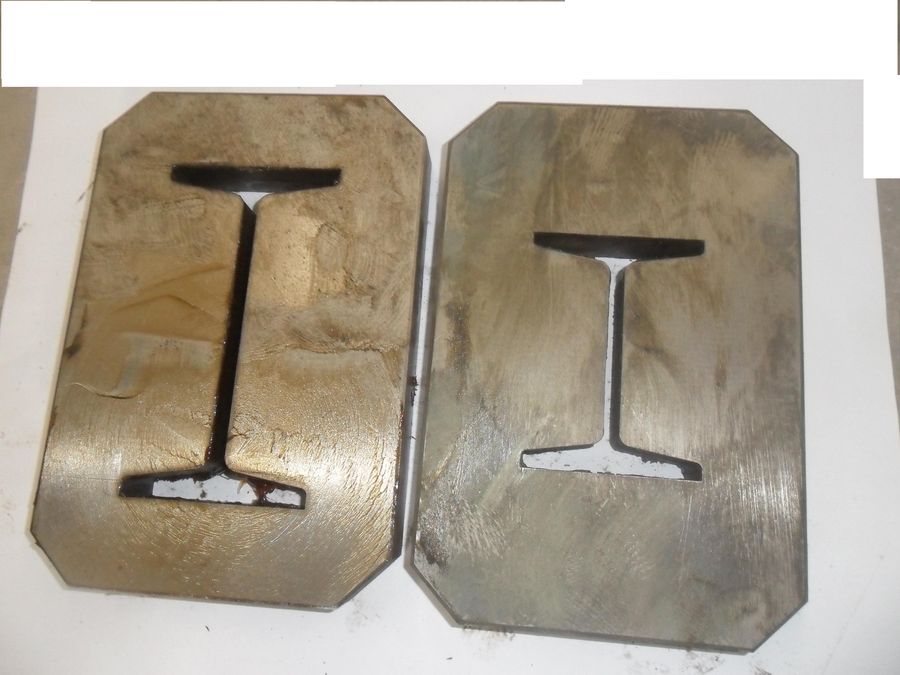

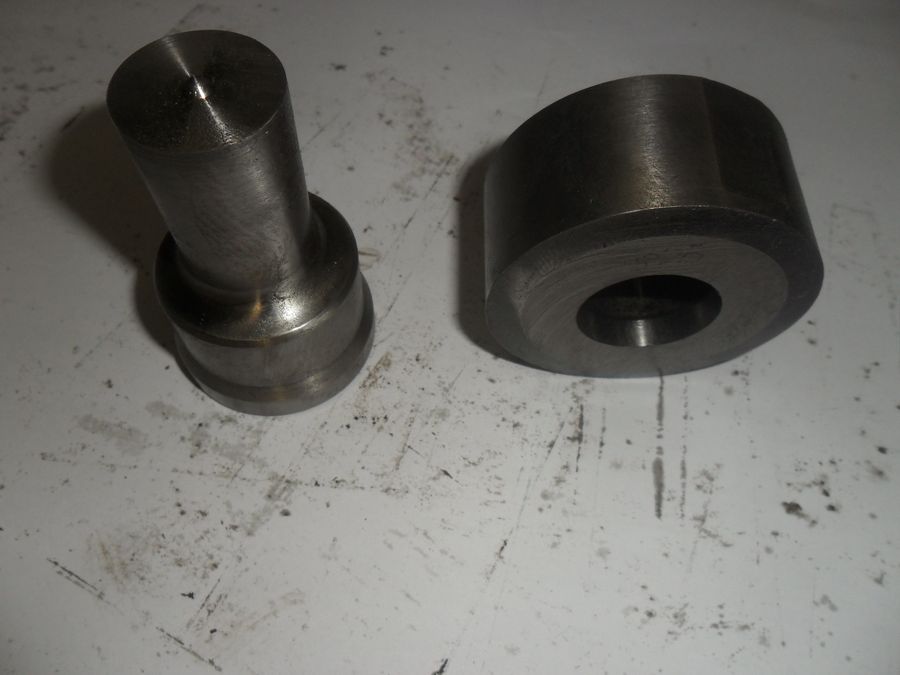

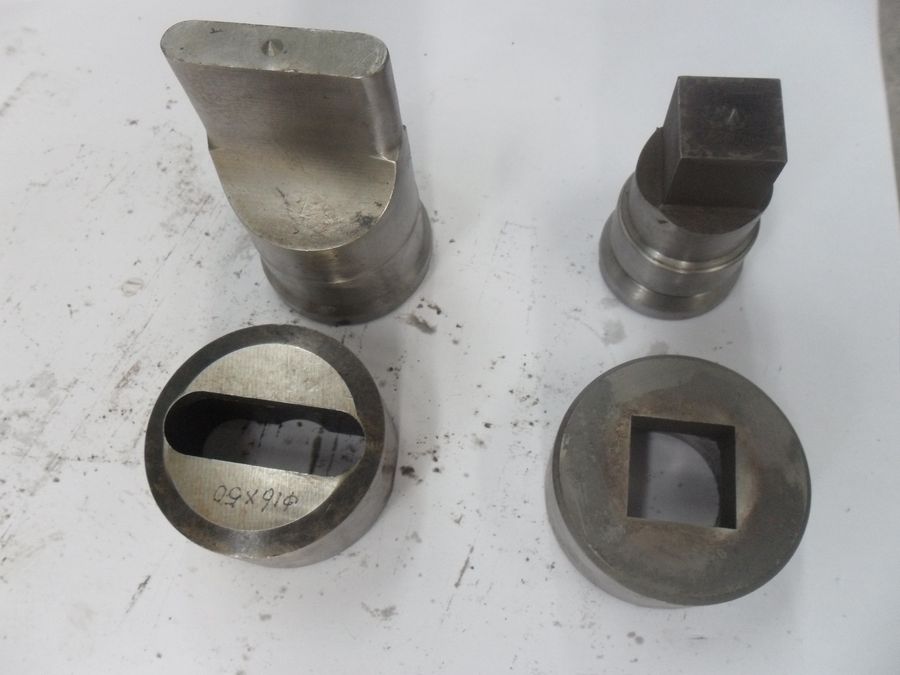

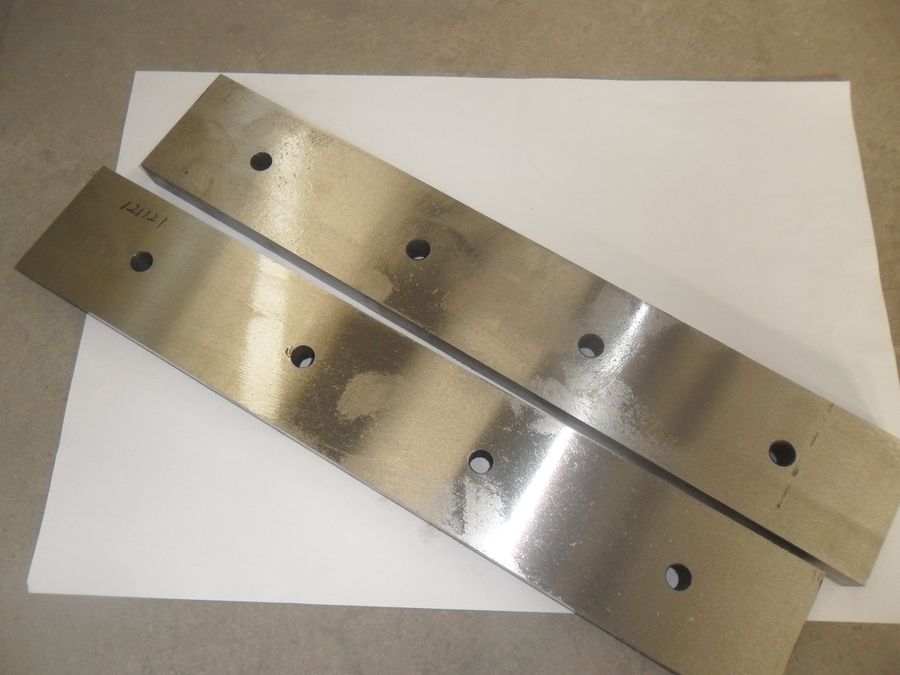

Standard tooling ships with every machine; channel and I-beam dies are optional.
Videos
Applications
Steel-arch and lattice-girder connection platesSteel structure fabricationTower and bracket makingMachinery workshopsConstruction sites
