Advance Small-Pipe Tip Forming Machine
Induction heats the pipe end in under 20 seconds and hydraulically forms a closed tip for tunnel advance pipes.
Advance Small-Pipe Tip Forming MachineHY50NCB
Φ42 mmPipe diameter (custom)
35 kWInduction heater
7–20 sForming time
3000–5000Pipes per day
Overview

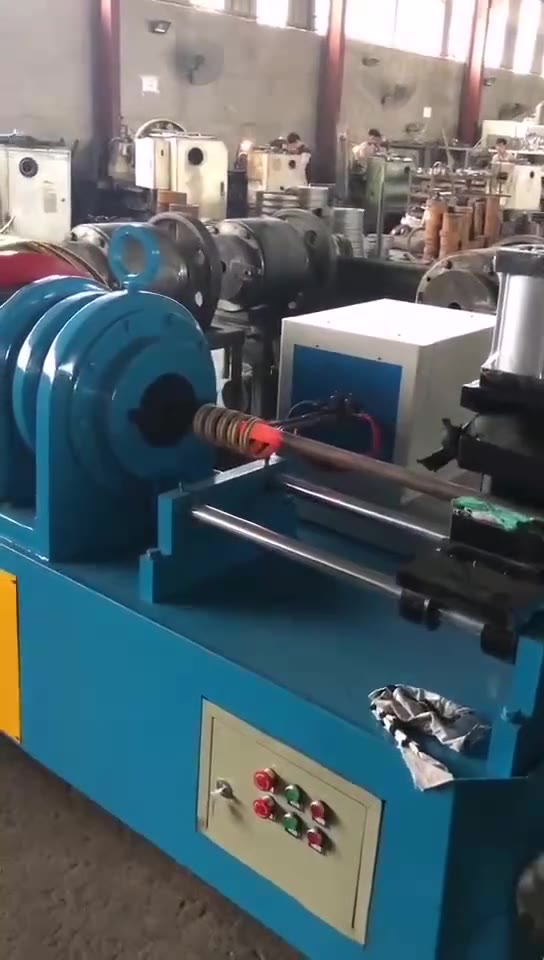

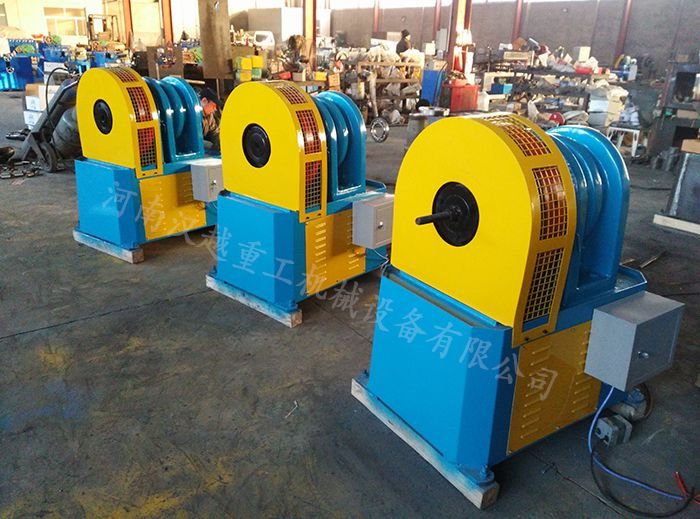

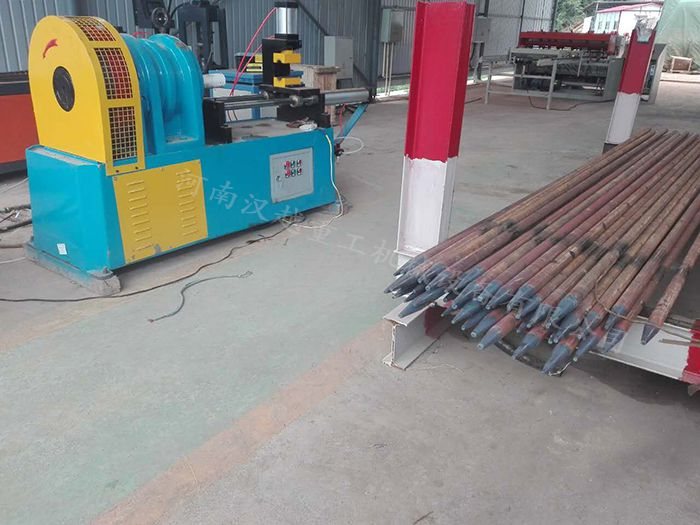

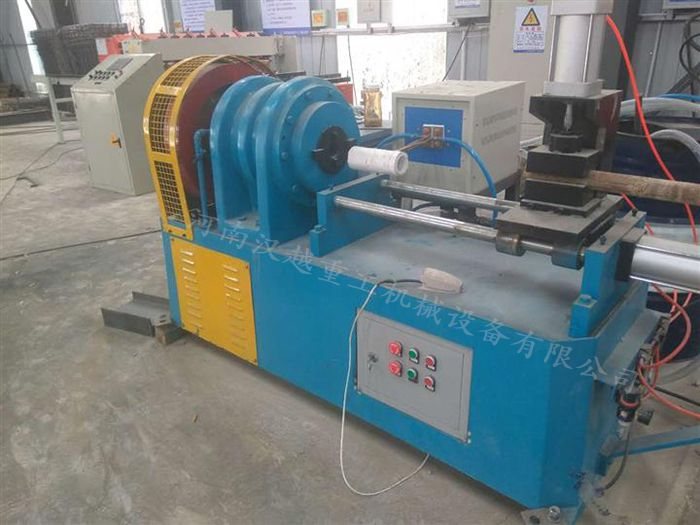

The HY50NCB points the ends of steel advance pipes so they drive easily into rock and soil. A 35 kW high-frequency induction heater brings the pipe end to forming temperature in under 20 seconds, then a microcomputer-controlled hydraulic head closes it into a tip. The same machine can also shrink, expand, blunt and bulge pipe ends.
Key features
- Microcomputer control, hydraulic drive.
- Movable foot switch with automatic, emergency-stop and continuous modes.
- No pollution, fast, small, light, quick die change, easy to operate and maintain.
- Shrinking, expanding, blunting and bulging with interchangeable dies.

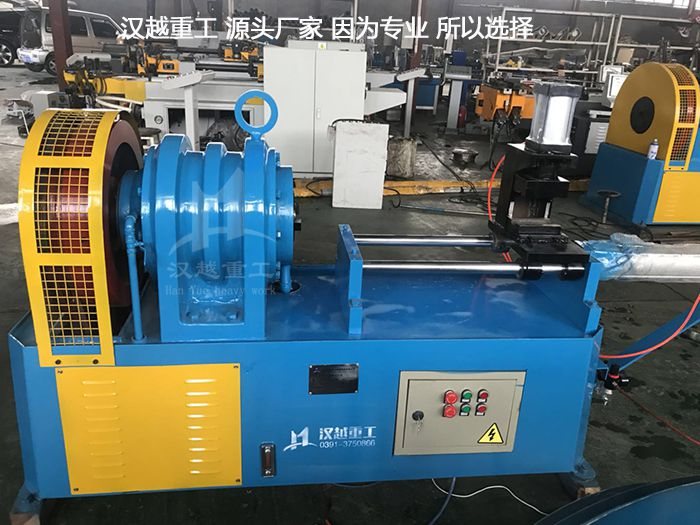

- Hot rotary forging with four quiet die segments; dies in vacuum-hardened, precision-ground die steel.
- One operator loads the pipe; the machine clamps and forms automatically. Replaces manual welding of pipe tips.
- Dies made to order for square, rectangular and hexagonal tube.
Specifications
| Parameter | Value |
|---|---|
| Model | HY50NCB |
| Processing diameter | 42 mm (customisable) |
| Induction heater power | 35 kW |
| Heating time | < 20 s |
| Motor power | To be confirmed (4 / 5.5 kW listed) |
| Forming time | 7–20 s per pipe |
| Daily output | 3000–5000 pipes |
| Max. pipe (by build) | Φ60 × 3.0 or Φ80 × 4.0 mm |
| Dimensions | 1000 × 1200 × 1370 mm |
| Weight | 1.2–1.4 t |
Videos
Applications

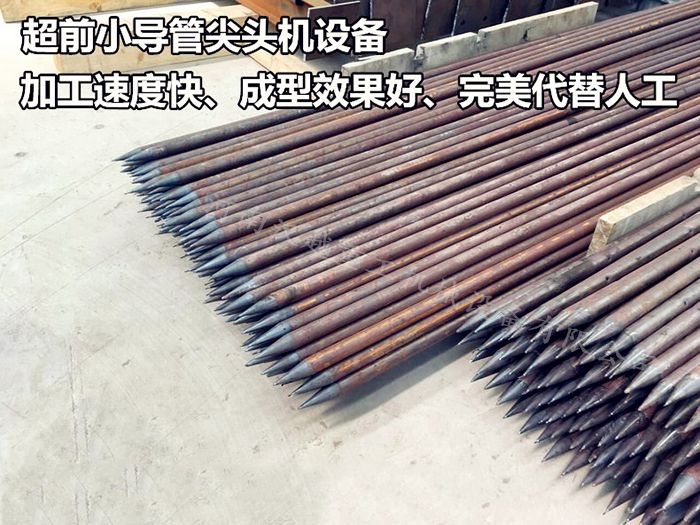

Tunnel advance small pipesGrouting pipesSoil nails and anchors
