HYWH-2000Rebar Processing
CNC Rebar Mesh Welding Machine
PLC-controlled mesh welder with servo pulling: 2,000 mm wide mesh, diagonal accuracy ±2 mm.
CNC Rebar Mesh Welding MachineHYWH-2000
Φ2–6 mmWire diameter
2000 mmMesh width
60–70/minWelding speed
±2 mmDiagonal error
Overview

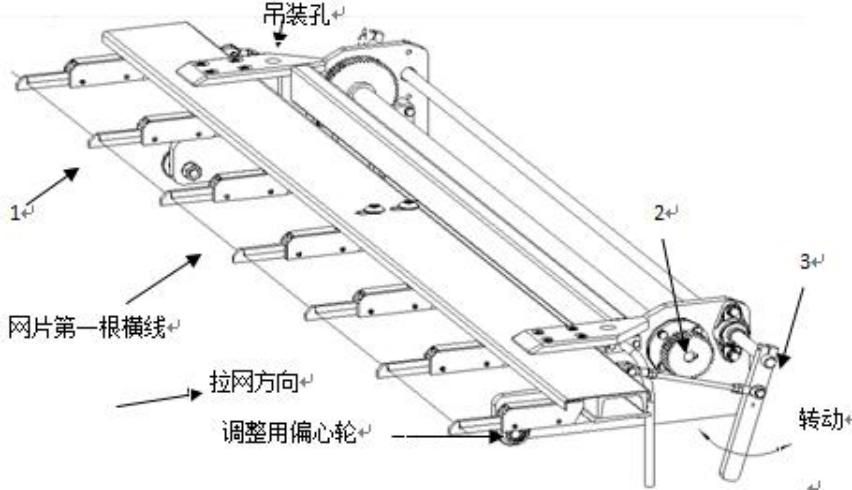

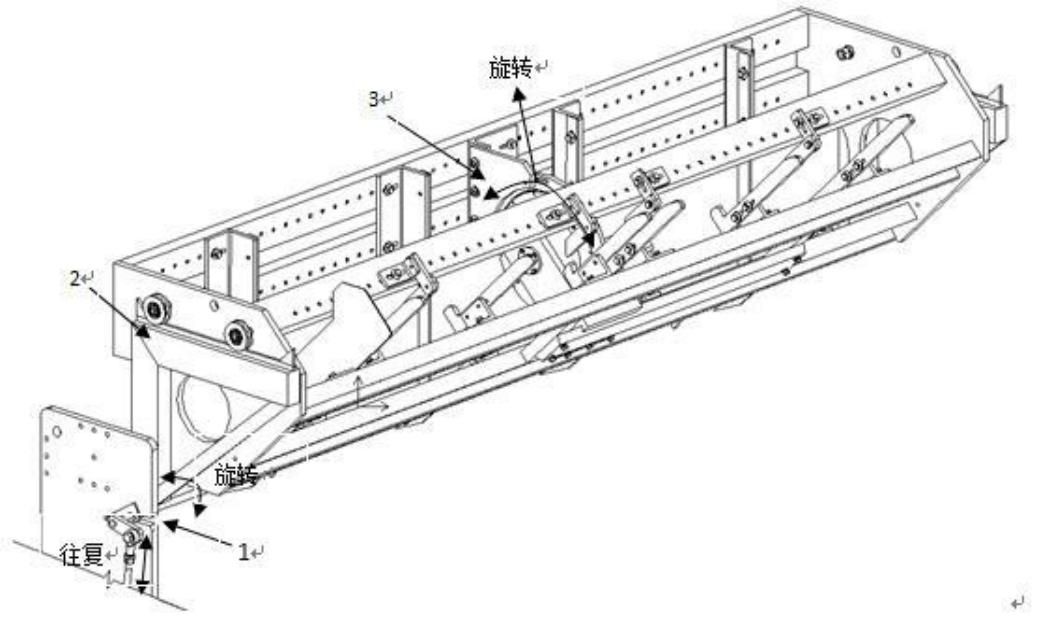

The HYWH-2000 straightens and cuts cross wires with automatic drop, and feeds line wires straight from coil with automatic straightening. A servo motor with reducer pulls the mesh, running on imported linear guides and a rack, so mesh openings stay precise. PLC programming and a touch screen give one-key operation.
Key features

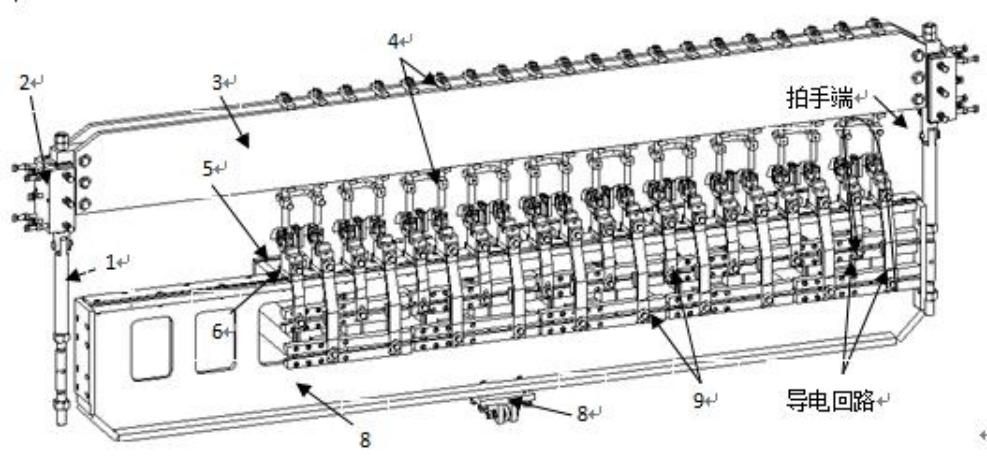

- SCR synchronous welding, one cycle (0.02 s) per weld, pneumatic electrode pressure.
- Line and cross wires fed from coil and automatically straightened and cut.

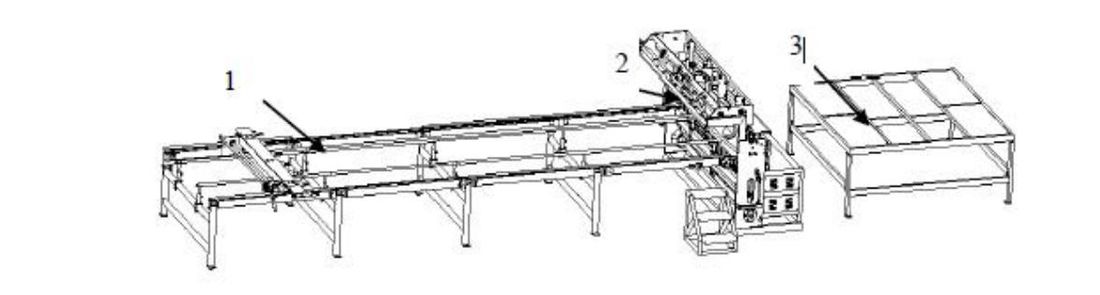

- Pulling frame extends in modules for 3.5 m, 5.5 m or 7.4 m mesh sheets.
- Line wire spacing adjusted by moving upper contacts and lower electrodes.
- Measured noise at source: 70 dB maximum.
Specifications
| Parameter | Value |
|---|---|
| Wire diameter | 2.0–6.0 mm |
| Mesh opening | 100–400 mm |
| Mesh width | 2000 mm |
| Welding points | 12 |
| Welding speed | 60–70 times/min |
| Rated capacity | 160 kVA × 3 |
| Rated voltage | 380 V, 3-phase, 50 Hz |
| Main motor | 4.0 kW (variable frequency) |
| Supply transformer | 100 kVA (within 150 m) |
| Mesh output | Servo reciprocating pull |
| Welding method | SCR synchronous |
| Welding time | 1 cycle (0.02 s) |
| Pressure | Pneumatic cylinder |
| Feeding | Line wire: straightened feed; cross wire: straightened, cut, auto drop |
| Dimensions (L×W×H) | 7000 × 2200 × 1200 mm |
| Machine weight | 4.0 t |
Scope of supply
| Item | Qty |
|---|---|
| Main welding machine | 1 |
| Electrical cabinet | 1 |
| Mesh pulling track | 1 |
| Straightening drum | 1 |
| Pay-off stands | 12 |
| Mesh shearing machine | 1 |
Applications
Tunnel lining meshRoad and bridge decksBuilding floor slabsPrecast components
