HY-30 / HY-40Dust Control
Dust Suppression Fog Cannon
Long-throw water mist for dust control: 30–120 m range, ±180° auto sweep, 100 m remote control.
Dust Suppression Fog CannonHY-30 / HY-40
30–120 mRange (custom)
±180°Auto horizontal sweep
−10°~55°Hydraulic pitch
100 mRemote control
Overview

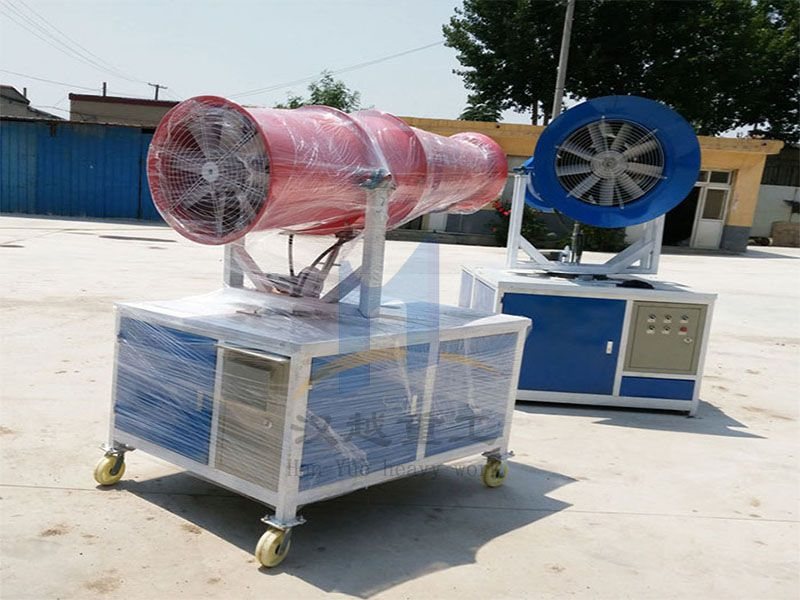

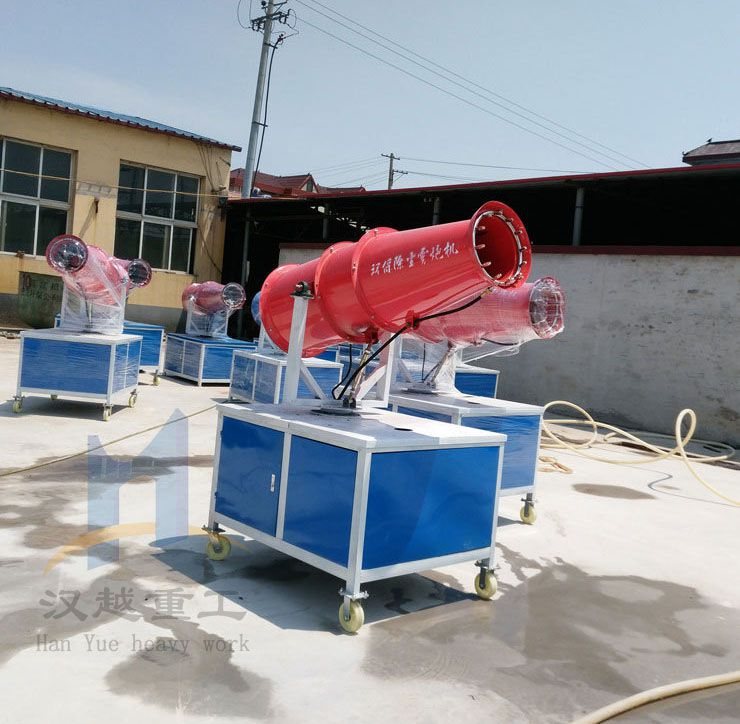

The HY-30 / HY-40 fog cannon throws a fine water mist over a wide area to settle dust, cool and humidify. It can be fixed or vehicle-mounted, is microcomputer controlled, sweeps automatically and is operated by remote control from up to 100 m. Range can be configured from 30 m up to 120 m.
Key features
- Long range, wide coverage, very fine droplets.
- Fixed or vehicle-mounted installation.
- Microcomputer control with automatic ±180° horizontal rotation.
- Hydraulic pitch adjustment from −10° to 55°.
- Remote control up to 100 m.
- Uses 70–80% less water than spray guns or water trucks, while covering a far larger area.
- Runs on 380 V mains or a diesel generator set.
Specifications
| Parameter | Value |
|---|---|
| Models | HY-30 / HY-40 |
| Range | 30–120 m (configured to order) |
| Fan motor (HY-40) | 3 kW |
| Dimensions (HY-40) | 1350 × 1000 × 1700 mm |
| Power supply | 380 V 3-phase or diesel generator |
| Horizontal rotation | ±180°, automatic |
| Pitch angle | −10° to 55°, hydraulic |
| Remote control distance | 100 m |
| Ambient temperature | −10 ~ +40 °C |
| Altitude | ≤ 2000 m |
| Relative humidity | Daily average ≤ 95% |
Applications

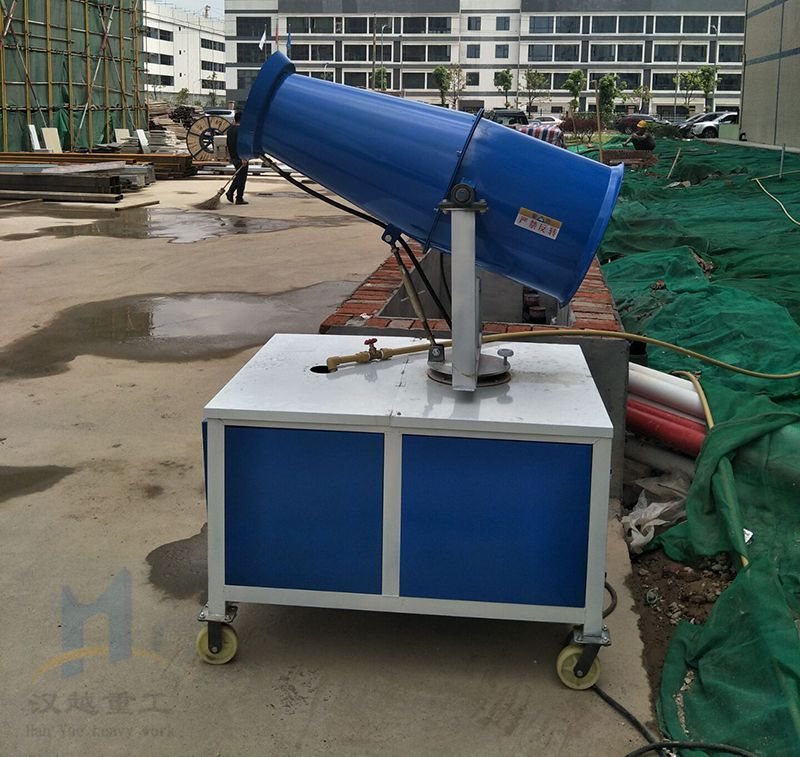

Construction sites and demolitionCoal, chemical, steel and coking plantsStockyards and coal yardsOpen-pit mines and blastingPorts and bulk handlingLandfills and disinfection
