HBT50Concrete Pumping

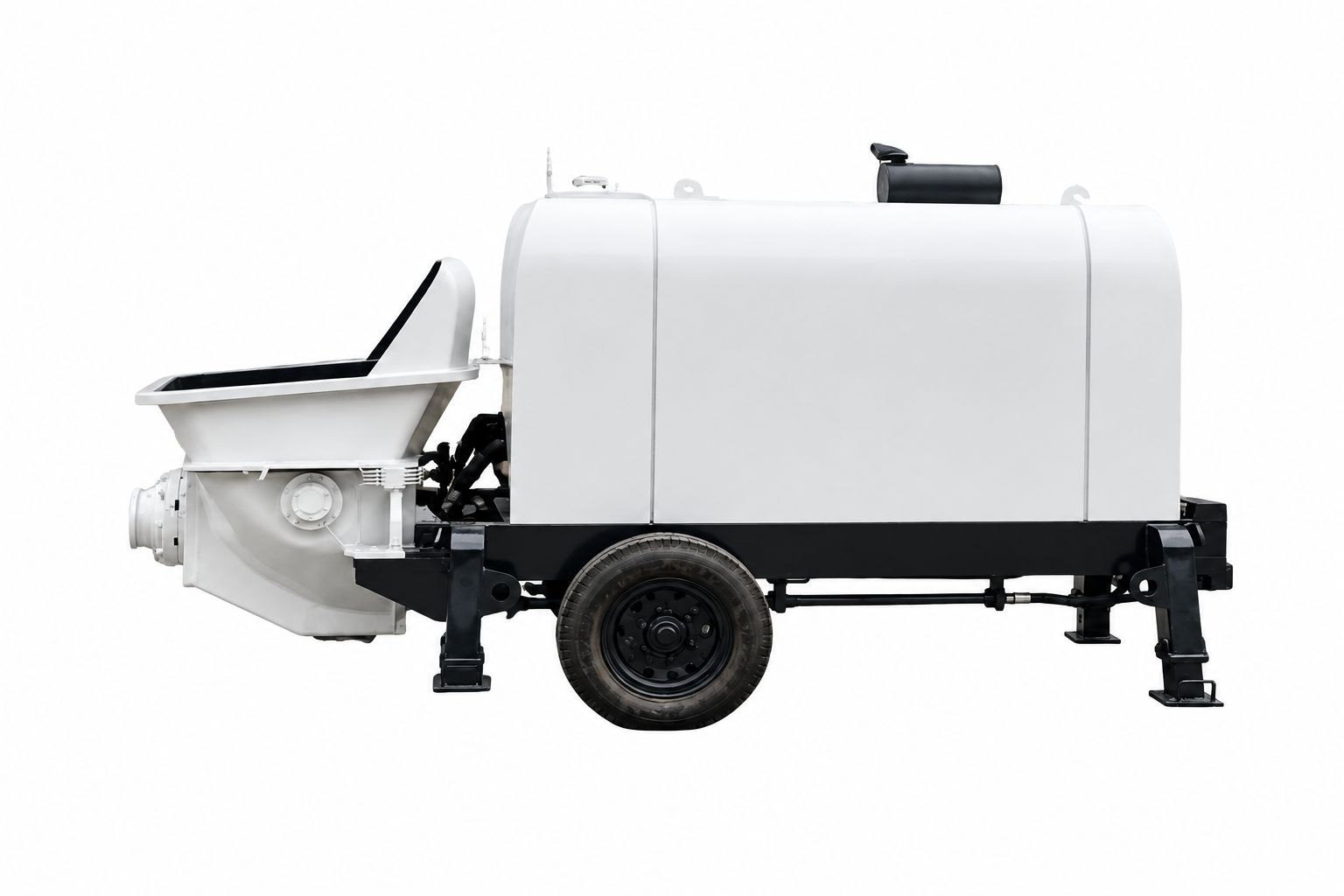

Trailer Concrete Pump
45 m³/h trailer pump, diesel or electric: 150 m vertical and 400 m horizontal delivery.
Trailer Concrete PumpHBT50
45 m³/hMax. theoretical output
12 MPaOutlet pressure
150 / 400 mVertical / horizontal
90 / 55 kWDiesel / electric
Overview
The HBT50 is a trailer-mounted concrete pump for tunnel lining, building and infrastructure work. Choose a diesel engine or an electric motor. A Kawasaki main pump, wear-resistant S-valve and centralised lubrication keep it pumping shift after shift.
Key features
- Power: Yuchai, Weichai-Deutz or Cummins diesel; or a branded electric motor such as Siemens-Beide.
- Kawasaki main oil pump; Huade or Italian OM valves.
- Centralised progressive lubrication with timer: accurate, economical oiling.
- Schneider, Omron or Siemens main electrical components.
- S-valve cast in manganese steel with wear-resistant surfacing.
- Spectacle plate and cutting ring in wear-resistant alloy for long life.
- Branded hydraulic hoses and fittings for a leak-free system.
Specifications
| Parameter | Value |
|---|---|
| Max. theoretical output | 45 m³/h |
| Max. aggregate size | 40 mm |
| Outlet pressure | 12 MPa |
| Vertical delivery distance | 150 m |
| Horizontal delivery distance | 400 m |
| Power | Diesel 90 kW / Electric 55 kW |
| Hopper capacity / feeding height | 0.6 m³ / 1200 mm |
| Delivery pipe diameter | 80 / 100 / 125 mm |
| Concrete slump | 140–230 mm |
| Overall dimensions | 4300 × 1600 × 1600 mm |
| Overall weight | To be confirmed |
Standard 100 m pipeline kit
| Part | Specification | Qty |
|---|---|---|
| Straight pipe | 125AB × 3 m | 25 |
| Straight pipe | 125AB × 2 m | 4 |
| Straight pipe | 125AB × 1 m | 4 |
| Elbow 90° | 125 × R1000 | 3 |
| Elbow 90° | 125 × R500 | 4 |
| Elbow 45° | R500 | 4 |
| Pipe clamp | 125 | 33 |
| Pipe clamp | 180 | 1 |
| Reducer pipe | 180 → 125 | 1 |
| Rubber seal | 125 | 200 |
| End hose | 3 m | 1 |
Main components
| Component | Brand / specification |
|---|---|
| Towing chassis | Hanyue |
| S-valve, mixer, hopper | Hanyue |
| Delivery and oil cylinders (2 sets) | 180 × 1120 |
| Hydraulic valves | Taiwan TO |
| Hydraulic oil filter | Xinxiang |
| Lubrication | Overflow six-hole distributor |
| Remote control and cabinet | Central control system |
| Main oil pump | 140, Kawasaki |
| Motor / diesel engine | 55 kW / 90 kW |
Videos
Applications
Tunnel liningHigh-rise buildingsBridgesRoads and rural works
